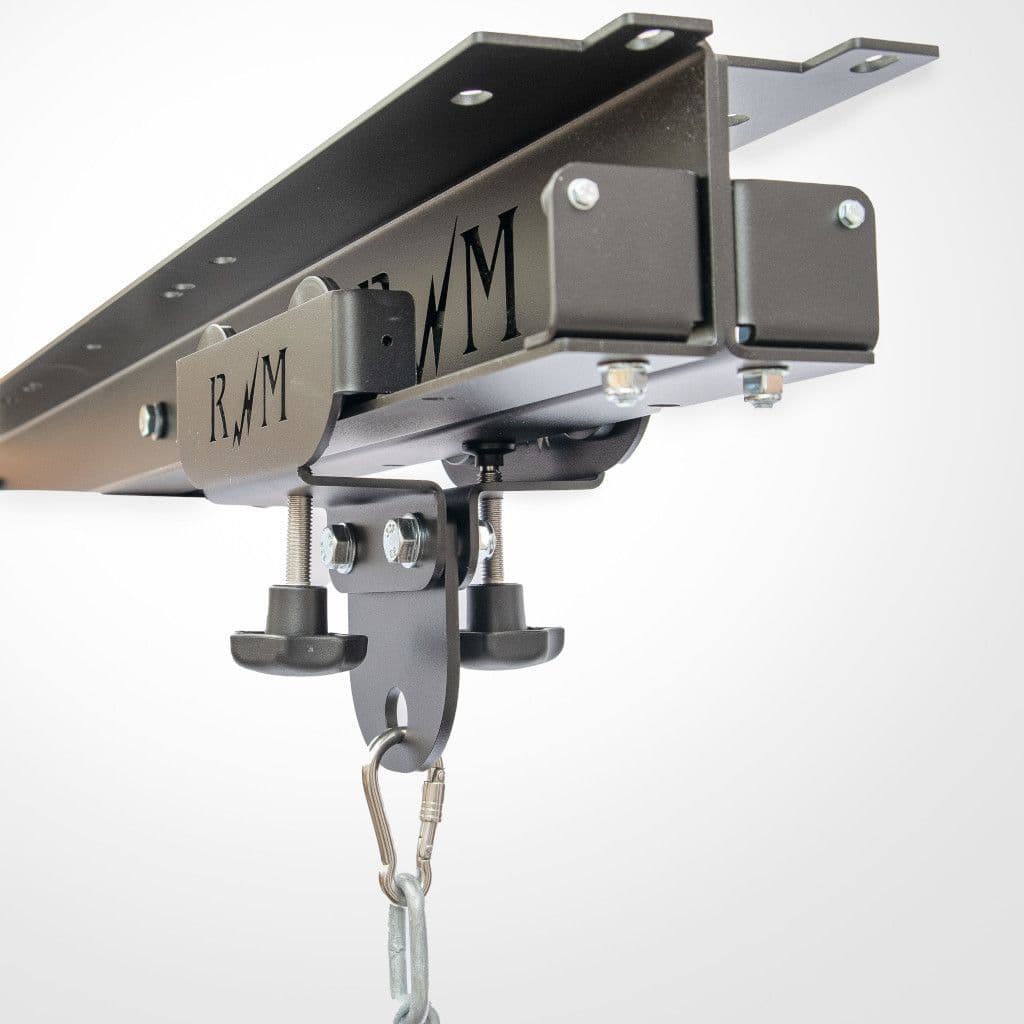

Reflex M2 I-Beam Punch Bag Roller Mount

For beam widths: 114mm to 178mm (4.5" - 7")
NB. If fitting to our roller mount track please select the 114mm-127mm option in the drop down list.

For beams 89mm - 114mm see M1 Roller Mount. For beams 178mm - 254mm see M3 Roller Mount. For high ceiling situations see our Self-Locking Roller Mount.

Turn your existing I-Beam into a punch bag sliding track rail quickly and easily with our Reflex I-Beam Roller Mount punch bag hangers and free up space in your gym.

Our M model Roller Mounts are a rolling mounting system that can be quickly locked into position for punching bags that weigh up to 118kg/260lbs.

You can lock them into position for a static workout and then roll your punch bag out of the way when you're done. You can also leave them unlocked and let them roll along the I-Beam as you work out.

This Heavy Bag Mounting System is made from 4mm British powder coated steel plate and is easy to attach to I-Beams that are between 114mm and 178mm wide. Great for both Commercial Gyms and Home Gyms. Mounting hardware is included.

If you don't already have any I-beam installed then consider our Reflex Roller Mount Track

Features:

• For I-Beams between 114mm and 178mm wide
• Roll it out and lock into position or leave unlocked and let the bag move with you as you workout
• For Heavy Bags up to 118kg
• Great for commercial gym installations
• Grade 8.8 High Tensile Hardware
• UHMWPE Wheels for a smooth rolling operation
• Fabricated from 4mm British steel and powder coated for a durable lasting finish
• All mounting hardware included
• Manufactured in the UK
• Laser cut Reflex Mounts logo
• 5 year warranty!
• FREE UK shipping (excludes Scottish Islands & Channel Isles)
• Bespoke colour option service available

Optional Extra: Hanging Plate with Delta Strap - Avoid metal on metal wear and tear - Save £5 when added as option above.

Get 5% discount when you buy any combination of 2 or more Reflex Mounts products. Automatically deducted at checkout. (Applies to UK mainland & Northern Ireland only. Excludes already discounted combo deals).

Order by the width size of the I-Beam:

114mm - 127mm (4.5"- 5.0")
127mm - 140mm (5.0" - 5.5")
140mm - 153mm (5.5" - 6.0")
153mm - 165mm (6.0" - 6.5")
165mm - 178mm (6.5" - 7.0")

PDF Download Links:

Data Sheet - M Series Roller Mounts

Installation Instructions

Bespoke colour options
We can also offer bespoke colour options service on the powder coating if you require something other than the standard black finish. Please contact us for details.
